  • Name:8 Bands Portable VHF UHF DDS Jammer
  • Model:WF-VIP JAM8
  • Features:
    WF-VIP JAM8 is not only Bomb jammers, but also High Power Portable DDS Convoy Jamming System, Portable RF Jammer, Portable Bomb jammer. This jammer can implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
    WF-VIP JAM8 can cove all RF communication Frequencies between 20MHz to 3600MHz continuously and simultaneously.

    ● High-power portable multi-band jammer.
    ● Field programmability for rapid adjustment frequence with output Watt.
    ● Modular construction for easy maintenance, repair and upgrade.
    ● Jammer up to 8 different jamming modules simultaneously,and cover up to 20 different frequency bands.
    ● Each module with LED display to show its working frequency ,output power and etc.
    ● 400-450 watts total RF output power.
    ● Equipped with a remote control unit. The operator can ON/OFF each module through the wired remote controller.
    ● Fully portable trolley-type case.
    ● AC mains or DC power.
    ● External LED display to indicate the battery level.
    ● Designed with external backup battery input, adapted to external battery. Facilitating to change the battery timely for field use.
Product Details

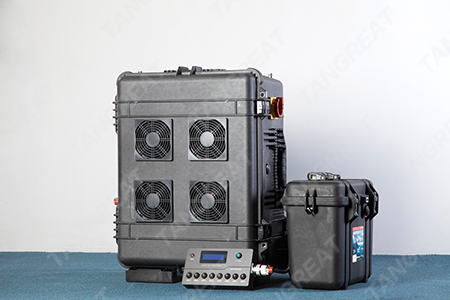

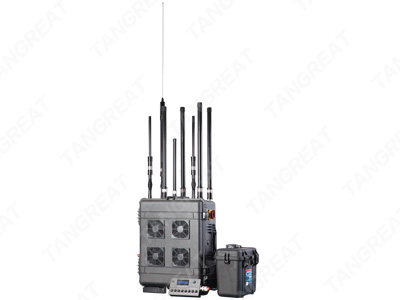

HIGH-POWER PORTABLE DDS MULTI-BAND JAMMING SYSTEM  Model No. WF-VIP JAM8
TECHNICAL SPECIFICATION
Based on its modular design and configuration our digital jammer can be easily operated, upgraded, serviced,repaired and adapted to its required use.
Digital Jammer modules can be changed easily and quickly just as changing the mobile phone battery.
Different jamming frequency bands can be configured as the customers required immediately.

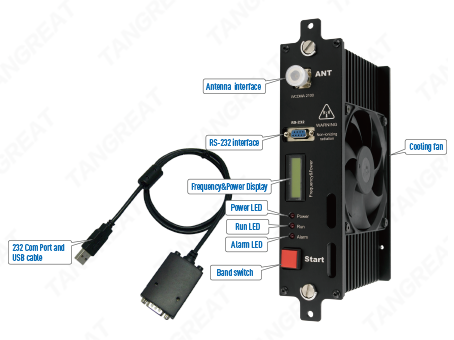

CHARACTERISTIC OF JAMMER MODULES
1.Each module is designed with three indication lights, to show Power, Run and Alarm (Antennae VSWR feedback status)
2.Each module is with LCD display to indicate the working frequency, output power and etc.
3.Each Module is designed with 232 Com Port and USB cable to connected to the computer. Frequency bands and output power can be adjusted, and the working status can be monitored through this software.

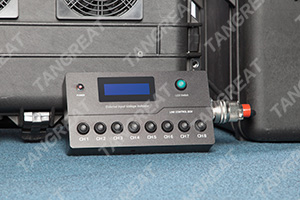

REMOTE CONTROLLER
WF-VIP JAM8 is design with a wired remote control unit,facilitating the operator to manage each module in any situation. This remote control unit can also display both internal and external battery level as well as built-in power supplies’ working status.

DDS MODULE SOFTWARE INTERFACE
DDS software interface is quite simply. The operators just move the mouse and then he can set up working frequency bands and output power of the modules. Each module can be up to 4 channels output at most.

APPLICATION
Bomb disposal squads, VIP protection, Special Police (S.W.A.T), military security forces, bomb squads, anti-terror units, anti-drug units, border control units, checkpoint personnel, these types of law enforcement personnel who benefit greatly from the deployment of any of these best-in-class portable
RF jamming solutions.
They can conduct the law enforcement process more effectively to reduce the chance that the criminals leak the information.

NOTE:All Bomb Jammers,IED Jammer,RF Signal Jammerand RCIED Jammers,including cell phone jammers and mobile phone jamming devices are sold for governmental, law enforcement and military users only.




Please click to Request detailed specifications
of all our advanced jamming solutions.
