  • Name:High-power Portable DDS Multi-band Bomb Jamming System
  • Model:WF-VIP JAM5
  • Features:
    WF-VIP JAM5 is a  Bomb jammers, But also High Power Portable  DDS Convoy Jamming System, Portable Rf Jammers, Portable Bomb jammers, Implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.
    WF-VIP JAM5 can cover, continuously and simultaneously, all the RF communication Frequencies 20MHz~3600MHz.
    WF-VIP JAM5, full portable multi band DDS Jamming system, is designed with a ruggedized trolley type case, light weight, highly mobility and reliance. This device is configured with 5 different jamming modules, the jamming frequency can be more than 20 Bands. Jamming frequency module can be up to 250-300watt output power maximum.
    The WF-VIP JAM5 is especially easy to install and operate: simply attach the selected antennas and activate the desired frequency bands. All operating controls and LED indicators are externally installed. The unit operates from internal batteries, or can draw power from AC mains or a suitable DC power source.
    The general design of the system meets military requirements as well as international quality standards and requirements. Our industrial in-house quality management system guarantees highest quality standards in terms of performance, reliably and long-life cycles.



    ● High-power portable multi-band jammer.
    ● Field programmability for rapid adjustment frequence with output Watt.
    ● Modular construction for easy maintenance, repair and upgrade.
    ● Jammer up to five different jamming modules simultaneously,and cover up to 10 different frequency bands.
    ● Each module with LED display to show its working frequency ,output power and etc.
    ● 250-300 watts total RF output power.

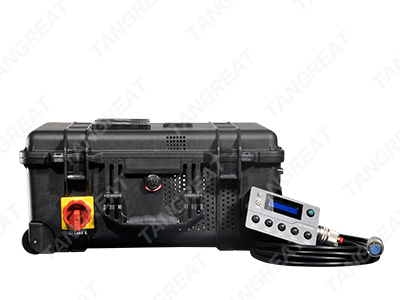

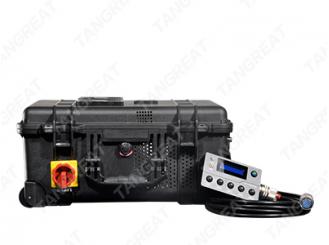

    ● Equipped with a remote control unit. The operator can ON/OFF each module through the wired remote controller.
    ● Fully portable trolley-type case.
    ● Internal battery, AC mains or DC power.
    ● External LED display to indicate the battery level.
    ● Designed with external backup battery input, adapted to external battery. Facilitating to change the battery timely for field use.

Product Details


TECHNICAL SPECIFICATION
Based on its modular design and configuration our digital jammer can be easily operated, upgraded, serviced, repaired and adapted to its required use.

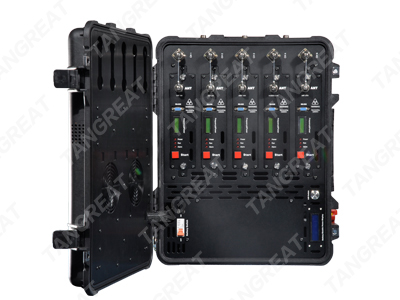

Digital Jammer modules can be changed easily and quickly just as changing the mobile phone battery. Different jamming frequency bands can be configured as the customers required immediately.

Frequency Range

25-2500MHz  25-3600MHz  25-6000MHz

Total RF Power

250Watt,  Max: 300Watt

Jammer Module Number

5

Channel Frequency Number

15Bands, Max: 20Bands

Cooling System

Systematic Smart Cooling System

System Protection

VSWR, Over-voltage, Over-current,

Jamming Source

Digital Signal Source Synthesize Technology

Adjust Frequency and Output Watt

Remote Control

Full System Operation Control With Battery Led display

Antenna Type

High Gain Omnidirectional Antennas

Number of Antennas

5

Built in Battery

35AH/24-28VDC

Jammer Module

Each Jammer module with antenna can be used as a single jammer.
All modules are controlled separately.

Jammer Size

56.5 x 46 x 27cm

Jamming System Weight

Approx.35kg

Operating Temperature Range

-35°C~+80°C

Operating Humidity

Up to 80%


WF-VIP JAM5 is design with a wired remote control unit,facilitating the operator to manage each module in any situation. This remote control unit can also display both internal and external battery level as well as built-in power supplies’ working status.

DDS software interface is quite simply. The operators just move the mouse and then he can set up working frequency bands and output power of the modules. Each module can be up to 4 channels output at most.
Bomb disposal squads, VIP protection, Special Police (S.W.A.T), military security forces, bomb squads, anti-terror units, anti-drug units, border control units, checkpoint personnel, these types of law enforcement personnel who benefit greatly from the deployment of any of these best-in-class portable RF jamming solutions.

Back to Portable Bomb Jammers for more choices.

APPLICATION
Bomb disposal squads, VIP protection, Special Police (S.W.A.T), military security forces, bomb squads, anti-terror
units, anti-drug units, border control units, checkpoint personnel, these types of law enforcement personnel who
benefit greatly from the deployment of any of these best-in-class portable RF jamming solutions.
They can conduct the law enforcement process more effectively to reduce the chance that the criminals leak the
information.

Note:All Bomb Jammers, IED Jammers,RF Signal Jammer  and RCIED Jammers, including cell phone jammers and mobile phone jamming devices are sold for governmental, law enforcement and military users only.
